Product Description

Multi-Interface USB Cable Tester Board

This USB cable tester board is designed for checking the internal wiring and connection status of different USB cables.

Simply connect both ends of the cable to the corresponding ports, turn on the tester, and observe the LED indicators. The indicator pattern helps users identify connected power lines, USB data lines, Type-C signal lines, and possible missing or abnormal connections.

It is suitable for cable inspection, electronics repair, product testing, quality control, DIY projects, and daily cable troubleshooting.

---

Main Features

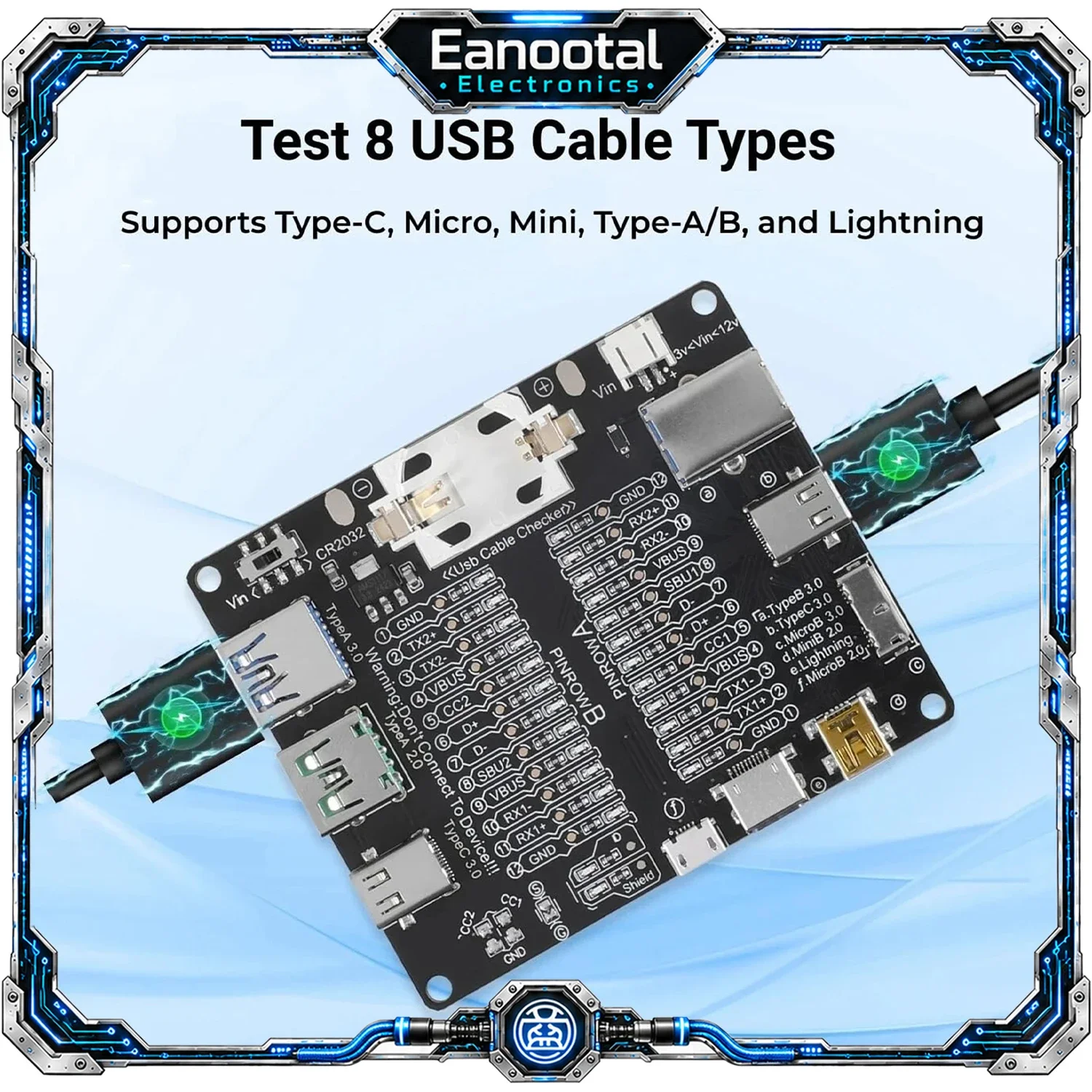

1. Multiple USB Connector Types

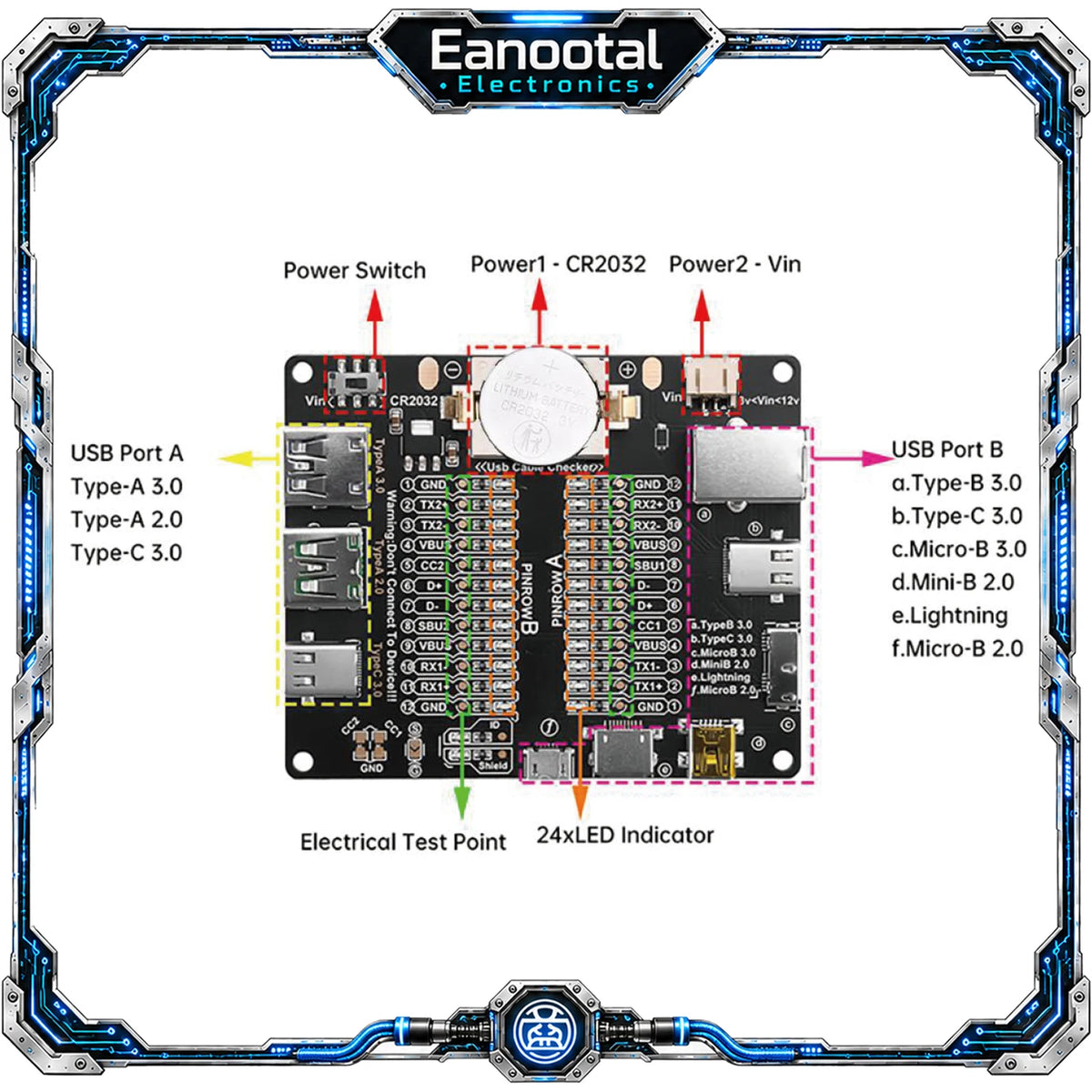

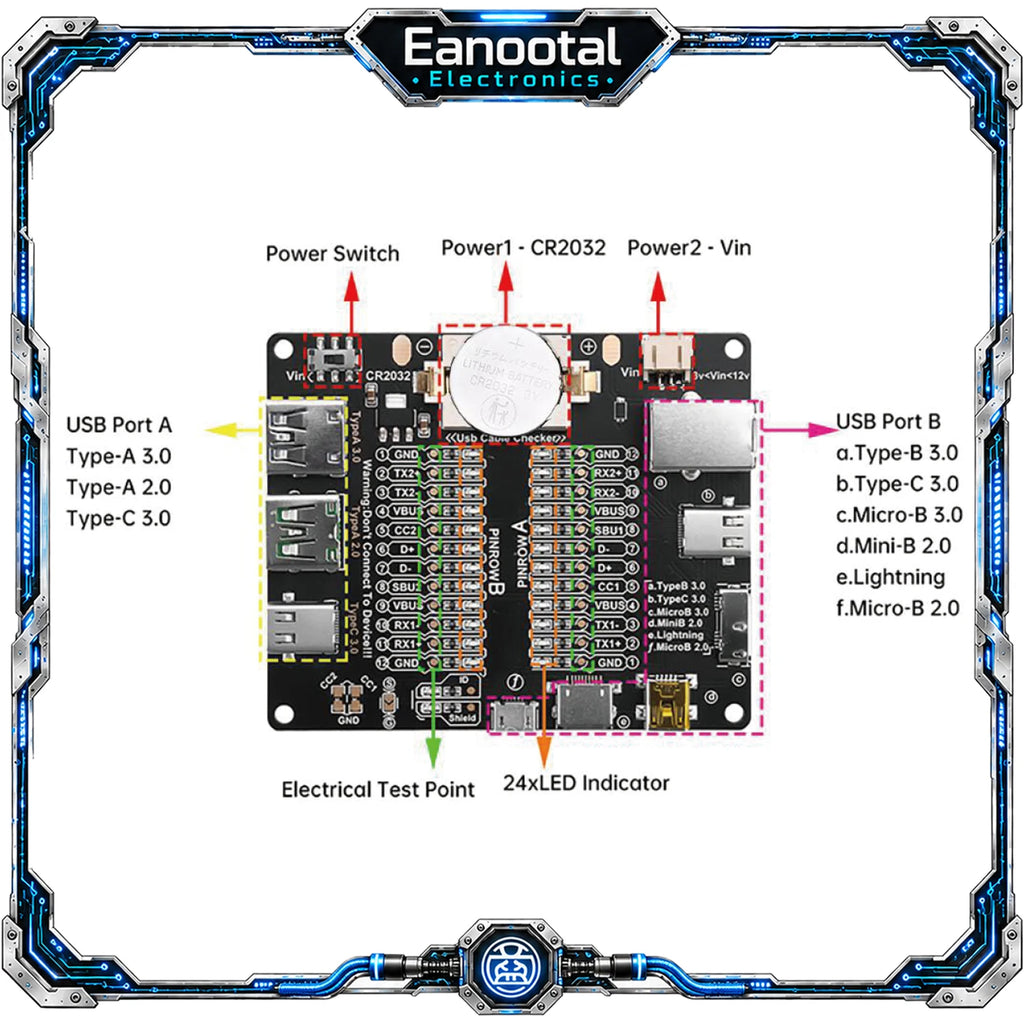

The tester board integrates multiple commonly used USB connectors, allowing different cable types to be checked on one compact board.

Supported connector types include:

• USB Type-A 3.0
• USB Type-A 2.0
• USB Type-C
• USB Type-B 3.0
• Micro-B 3.0
• Mini-B 2.0
• Lightning
• Micro-B 2.0

The integrated connector design makes cable inspection faster and more convenient.

---

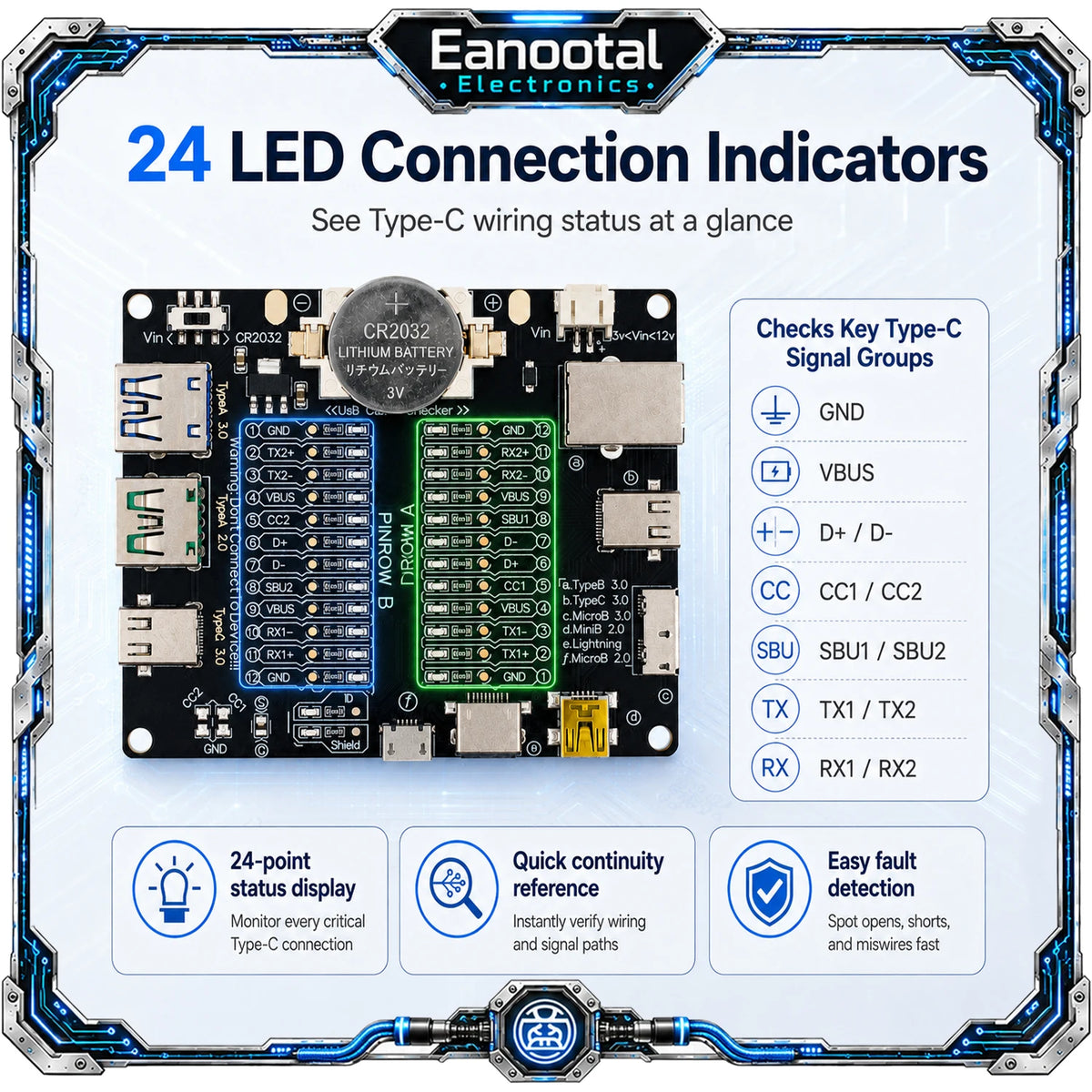

2. 24 LED Connection Indicators

The tester is equipped with 24 LED indicators for displaying the connection status of Type-C signal paths.

The indicator channels include:

• GND
• VBUS
• D+
• D-
• CC1
• CC2
• SBU1
• SBU2
• TX1
• TX2
• RX1
• RX2

Each indicator corresponds to a specific wiring path, helping users quickly check cable continuity and understand the internal connection configuration.

---

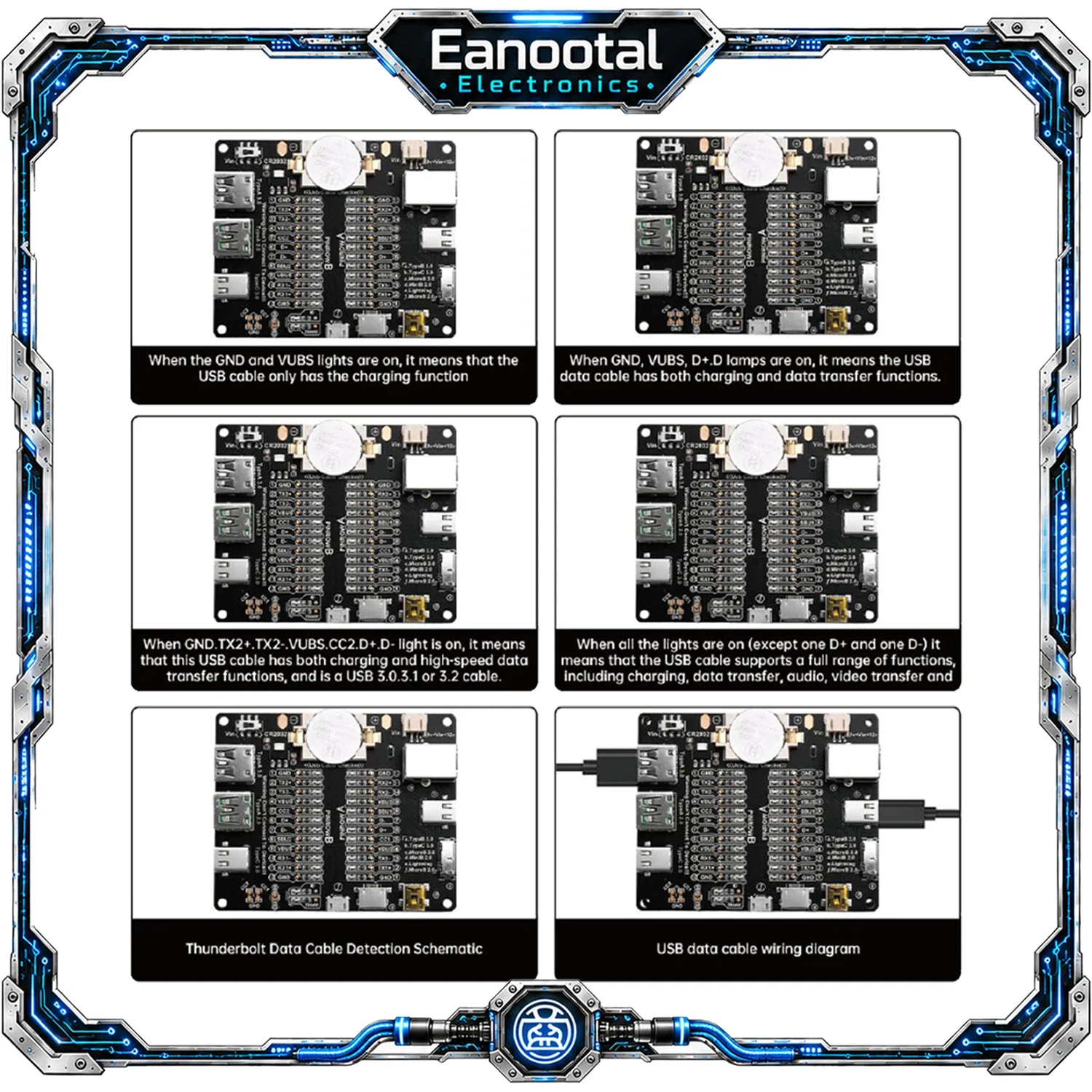

3. Identify Different Cable Functions

Different LED patterns can help identify different cable wiring configurations.

Examples:

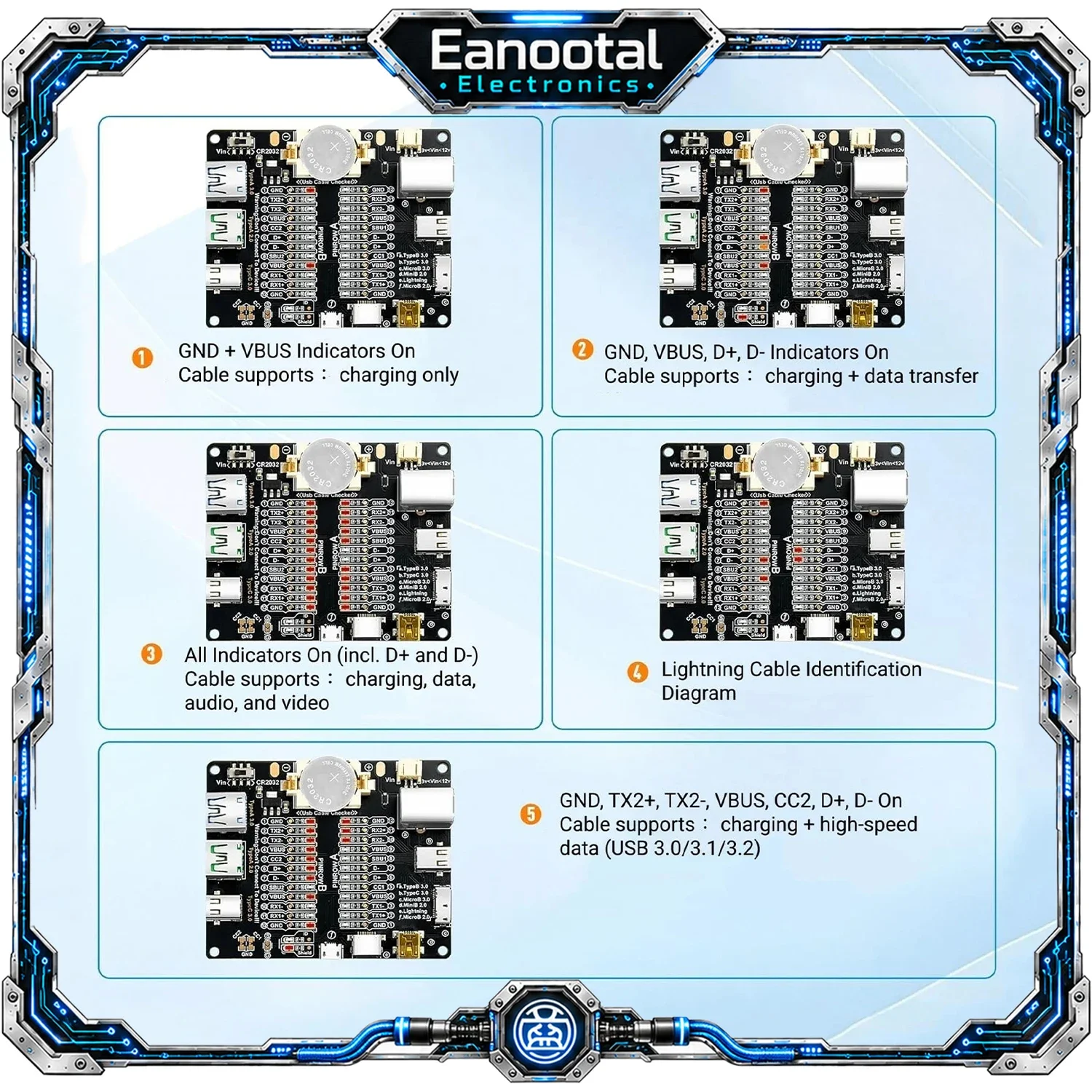

Charging Cable

When the GND and VBUS indicators are active, the cable mainly contains power connections.

Charging and USB Data Cable

When GND, VBUS, D+ and D- connections are active, the cable contains charging and USB data wiring.

High-Speed Data Wiring

The TX and RX indicator channels can be used to check whether corresponding high-speed signal paths are connected.

Full-Featured Type-C Wiring

Additional CC, SBU, TX and RX signal connections can help identify cables with more complete Type-C wiring.

Please note that this product checks wiring connection status. It does not measure actual transfer speed, charging wattage, voltage, current, video resolution, or protocol performance.

---

4. Quick Cable Troubleshooting

The LED display provides a clear visual reference for checking cable wiring.

It can help identify:

• Missing connections
• Disconnected wiring
• Abnormal connection patterns
• Incomplete data lines
• Different cable wiring configurations

Suitable for quick inspection and preliminary troubleshooting.

---

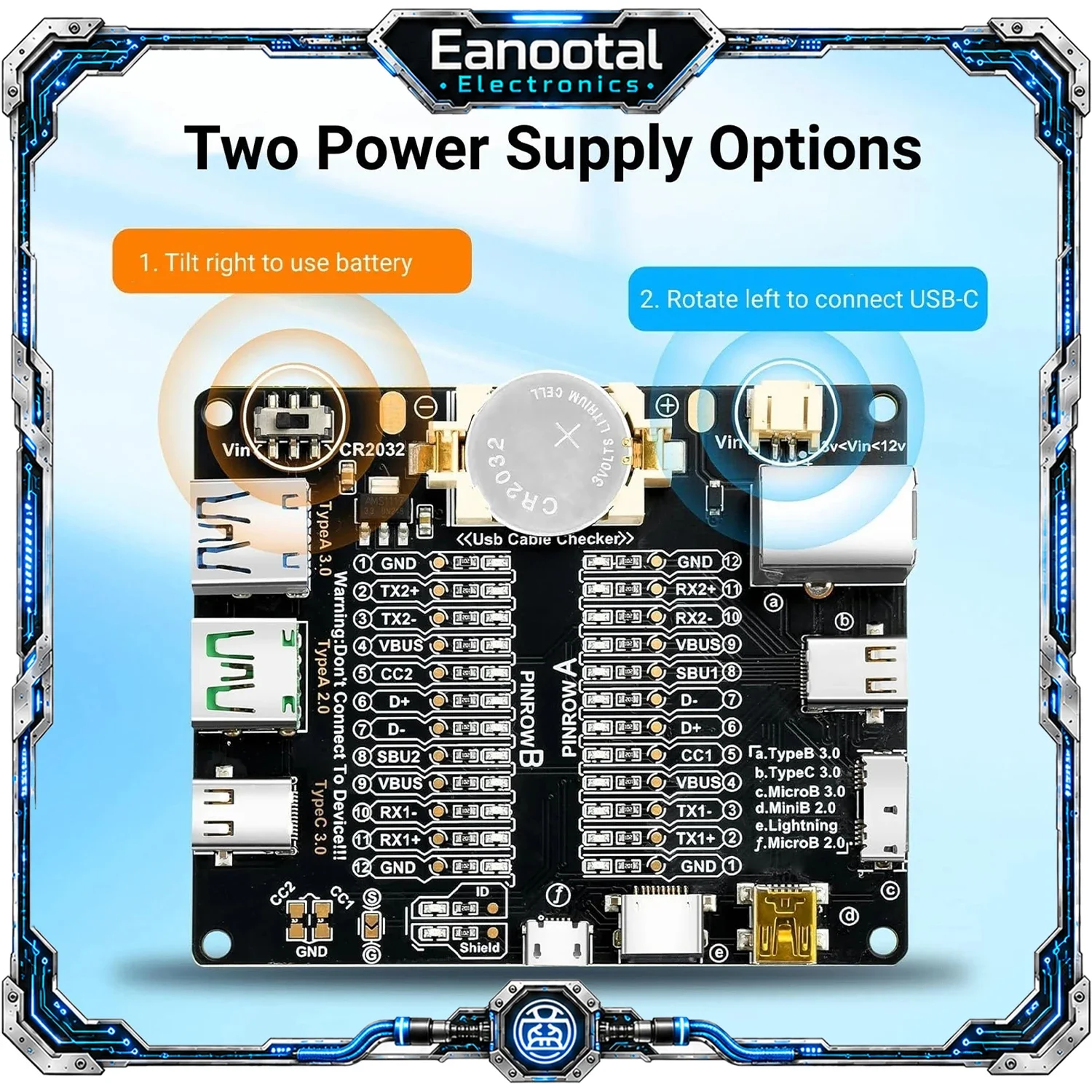

5. Dual Power Supply

The tester supports two power supply methods.

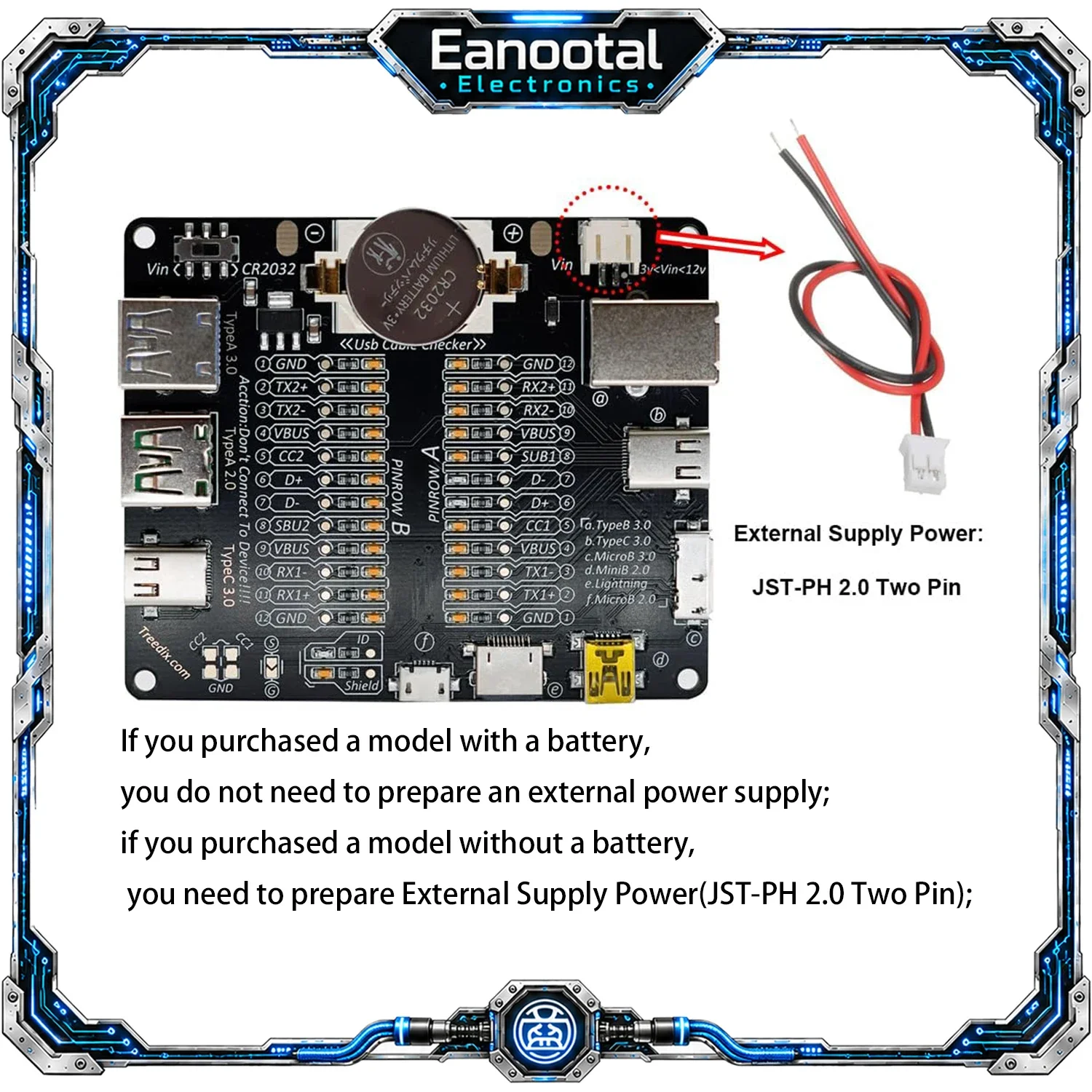

CR2032 Battery Power

A CR2032 coin battery can be used for portable testing without an external power supply.

External VIN Input

The tester also supports an external VIN power input.

Input voltage:

3V–12V

The dual power design provides more flexibility for different working environments.

---

6. Independent Power Switch

The built-in power switch provides convenient ON/OFF control.

Turn off the tester when it is not in use to reduce unnecessary battery consumption.

---

7. Electrical Test Points

Dedicated test points are available on the PCB.

They can be used with compatible test probes or measuring tools for additional inspection and troubleshooting.

---

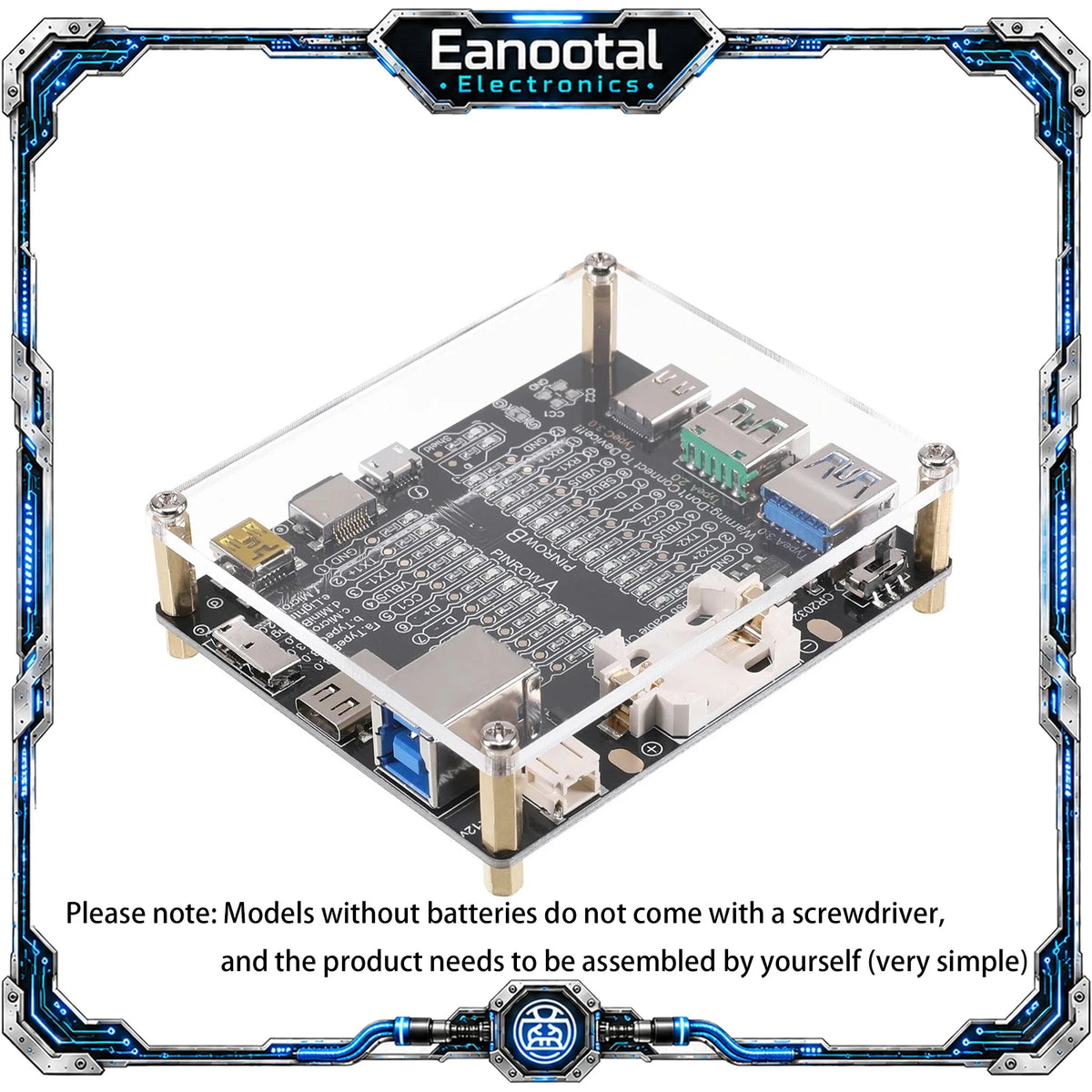

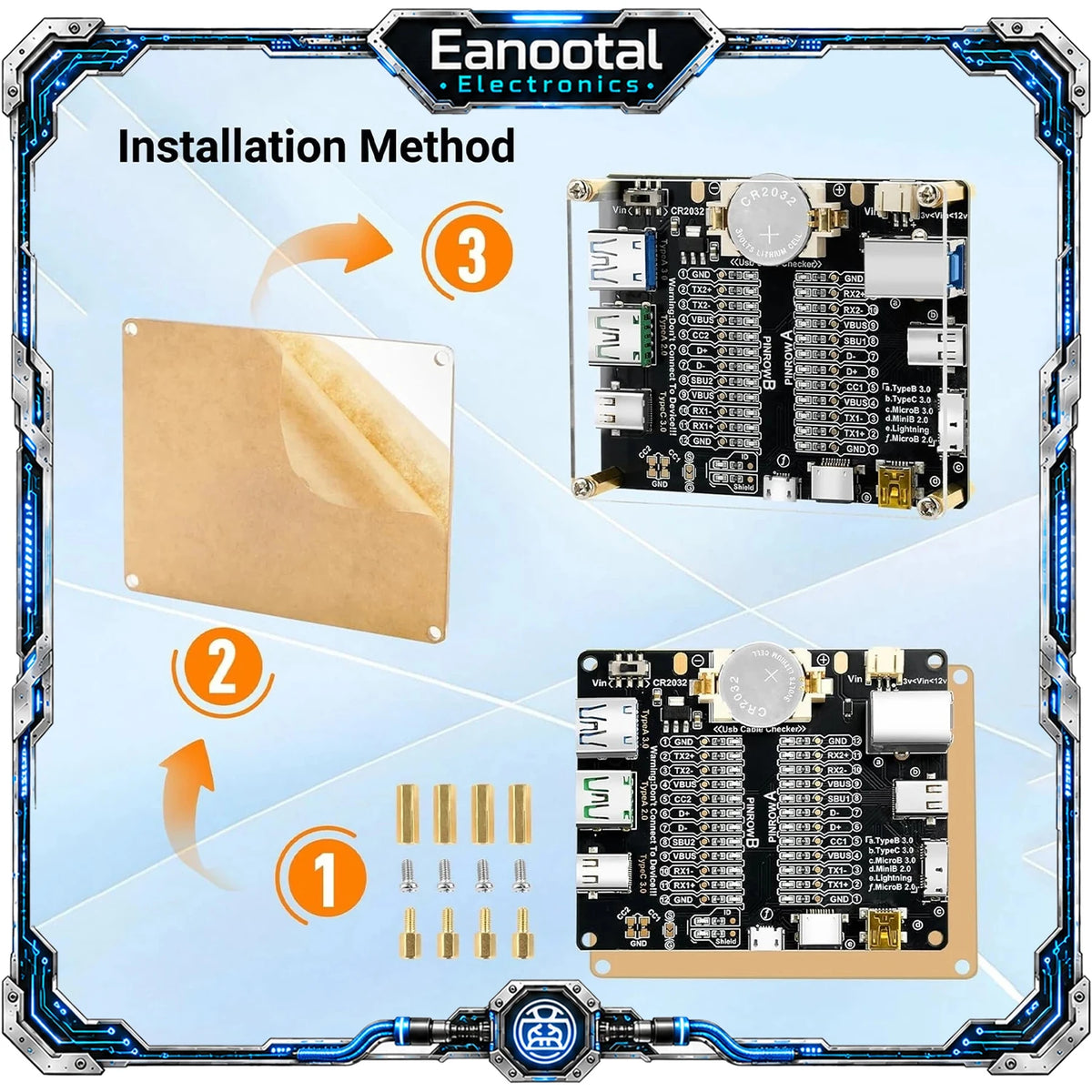

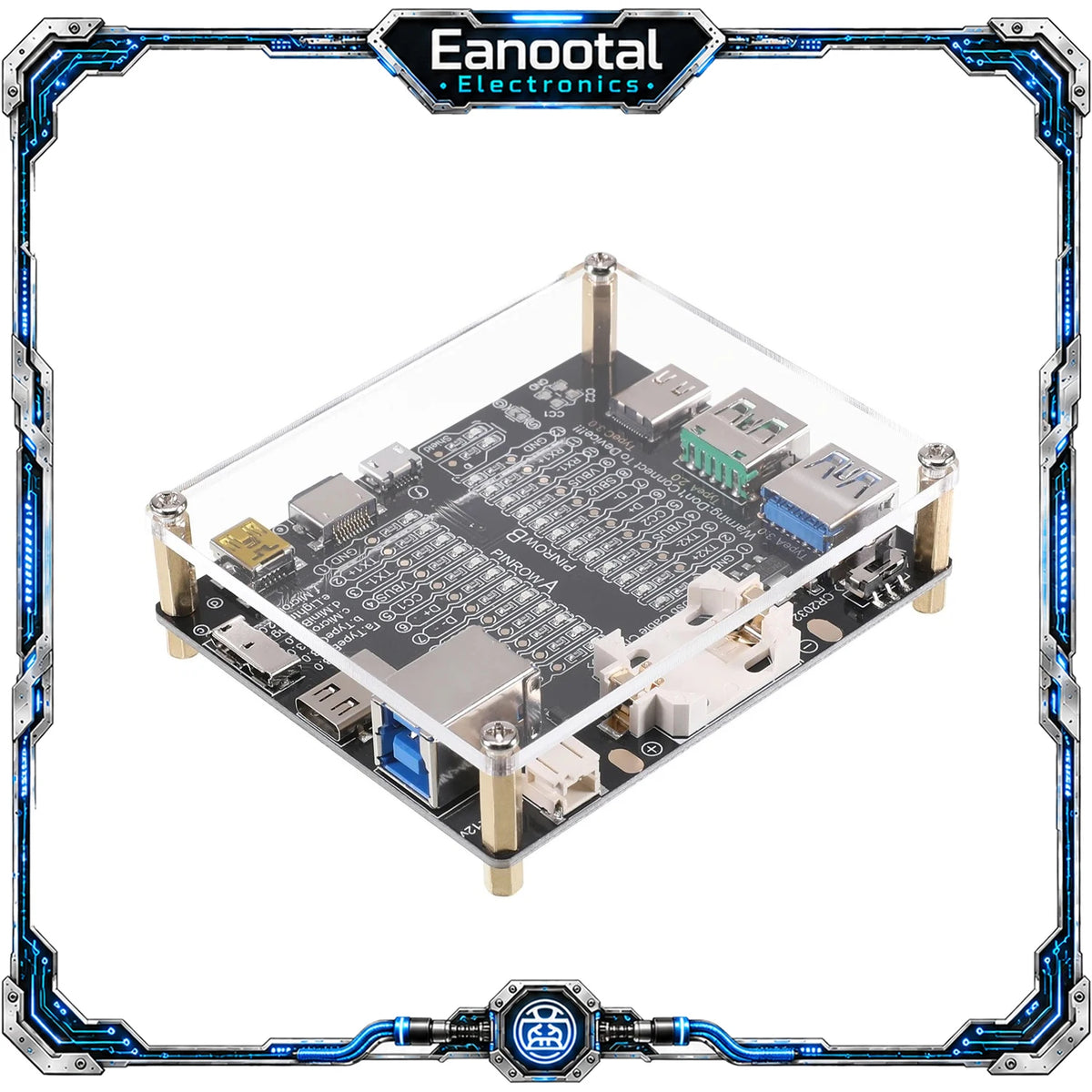

8. Acrylic Protective Housing

The included acrylic housing helps protect the circuit board during use.

Features:

• Transparent design
• Easy to view PCB indicators
• Helps protect components
• Stable desktop installation
• Compact and lightweight

The acrylic panels may have protective paper or protective film. Remove the protective layer before assembly.

---

How to Use

Step 1

Install a CR2032 battery or connect a suitable external VIN power supply.

Step 2

Connect both ends of the USB cable to the corresponding ports on the tester board.

Step 3

Turn on the power switch.

Step 4

Observe the LED indicators and compare the illuminated signal paths.

Step 5

Check whether the required power, data, or Type-C signal connections are present.

---

Product Specifications

Product Name:

USB Cable Tester Board

Product Type:

Multi-Interface USB Cable Wiring and Continuity Checker

PCB Color:

Black

PCB Material:

Printed Circuit Board

Indicator Type:

24 LED Indicators

Power Supply:

CR2032 Battery or External VIN Input

External Input Voltage:

3V–12V

Approximate Board Size:

80 × 70 mm

Approximate Assembled Height:

18 mm

Application:

USB Cable Inspection, Wiring Check, Electronics Repair, Cable Troubleshooting, DIY Testing and Quality Inspection

---

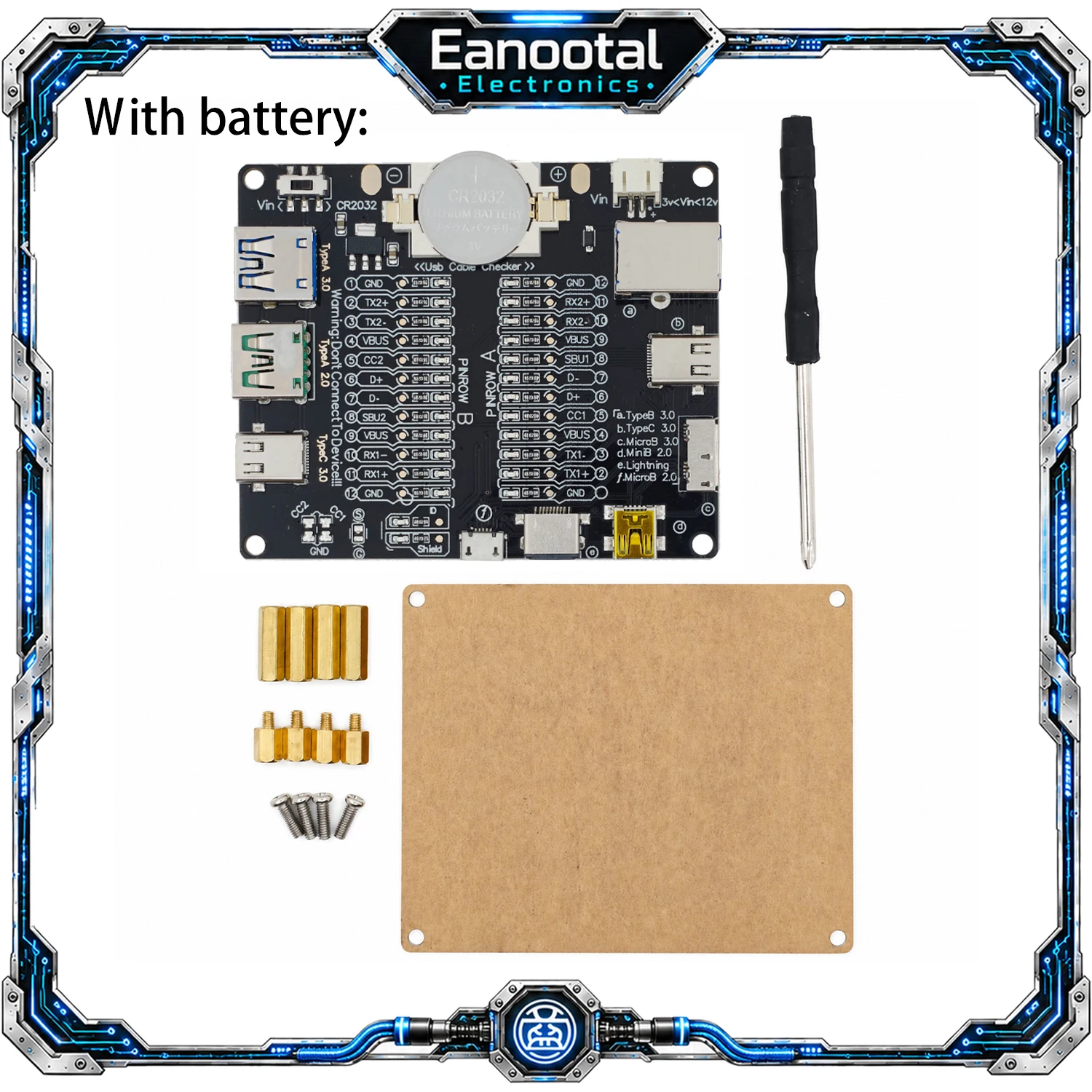

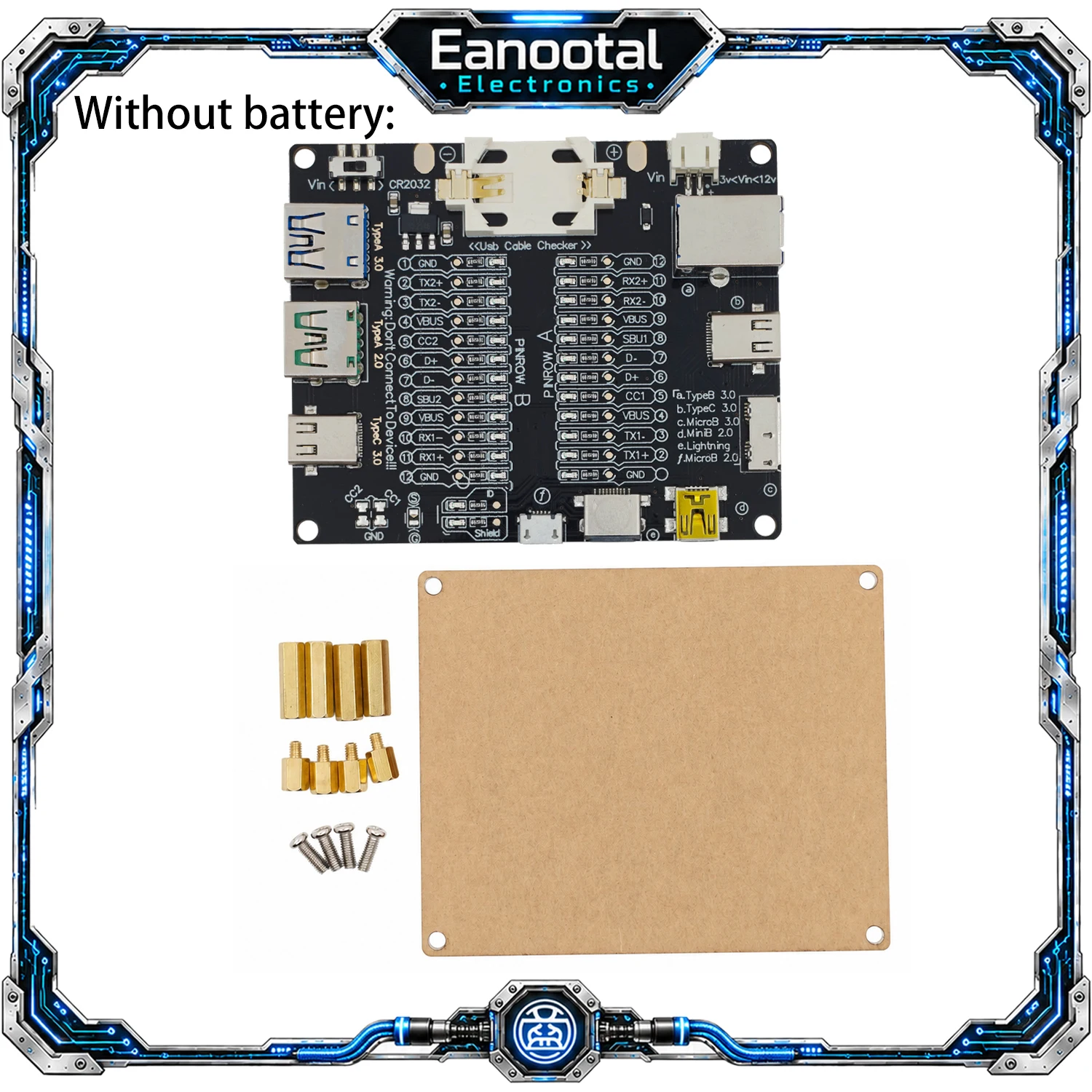

Package Includes

Package contents may include:

• 1 × USB Cable Tester Board
• Acrylic Protective Panels
• Brass Standoffs
• Mounting Screws

Please check the selected package option before ordering.

---

Applications

Suitable for:

• USB cable manufacturers
• Electronics repair technicians
• Mobile phone repair shops
• Computer repair technicians
• Cable sellers
• Quality inspection
• Electronics laboratories
• DIY electronics users
• Cable troubleshooting
• Product testing

---

Important Notes

1. This product is mainly used to check cable wiring and connection status.
2. It does not measure voltage, current, charging power, actual data transfer speed, PD protocol, QC protocol, or video resolution.
3. LED status may vary depending on the internal wiring and function of the tested cable.
4. Before testing, select the correct connector according to the cable type.
5. Do not connect incompatible ports or apply voltage outside the specified input range.
6. Product dimensions may have small differences due to manual measurement.
7. The CR2032 battery is included only when specified in the selected package option.
