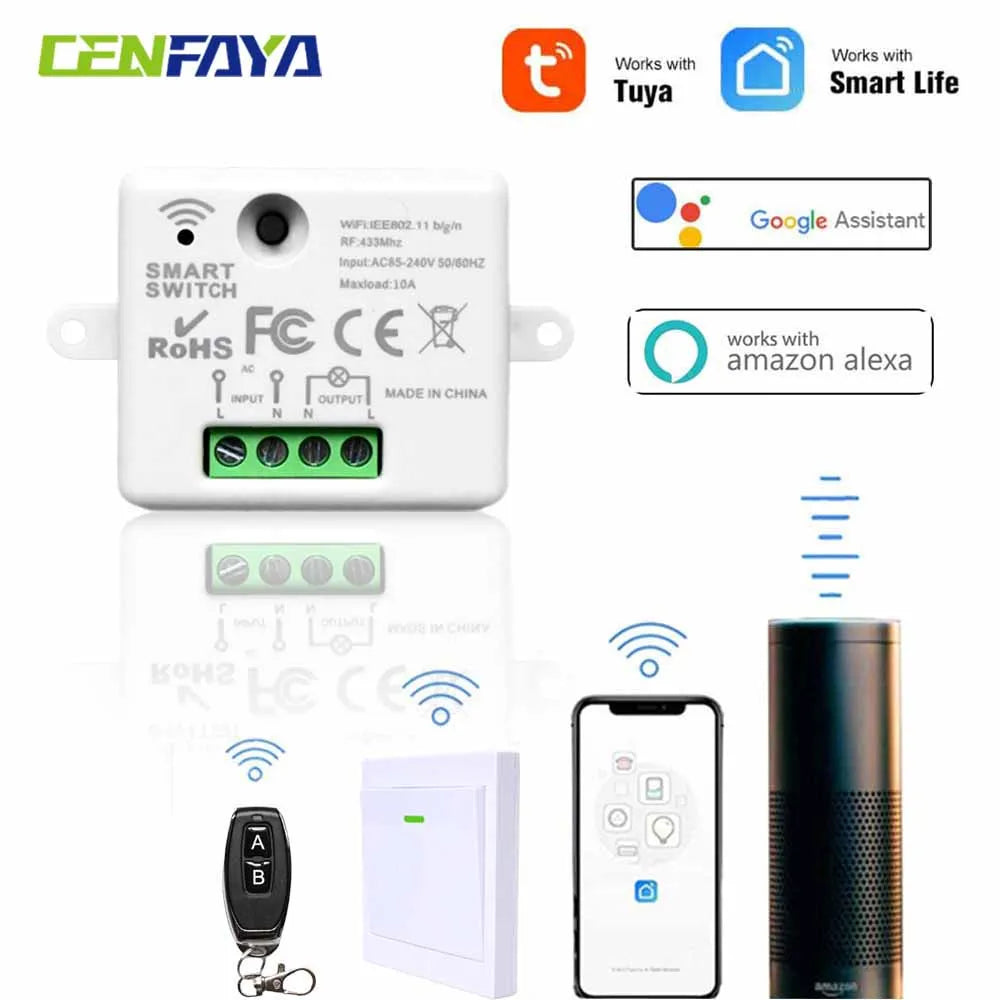

CENFAYA Smart WiFi Light Switch RF 433MHz Wireless Remote Control Wall Switch 110 220V 230V For Alexa Google Home Timer Function

Main features

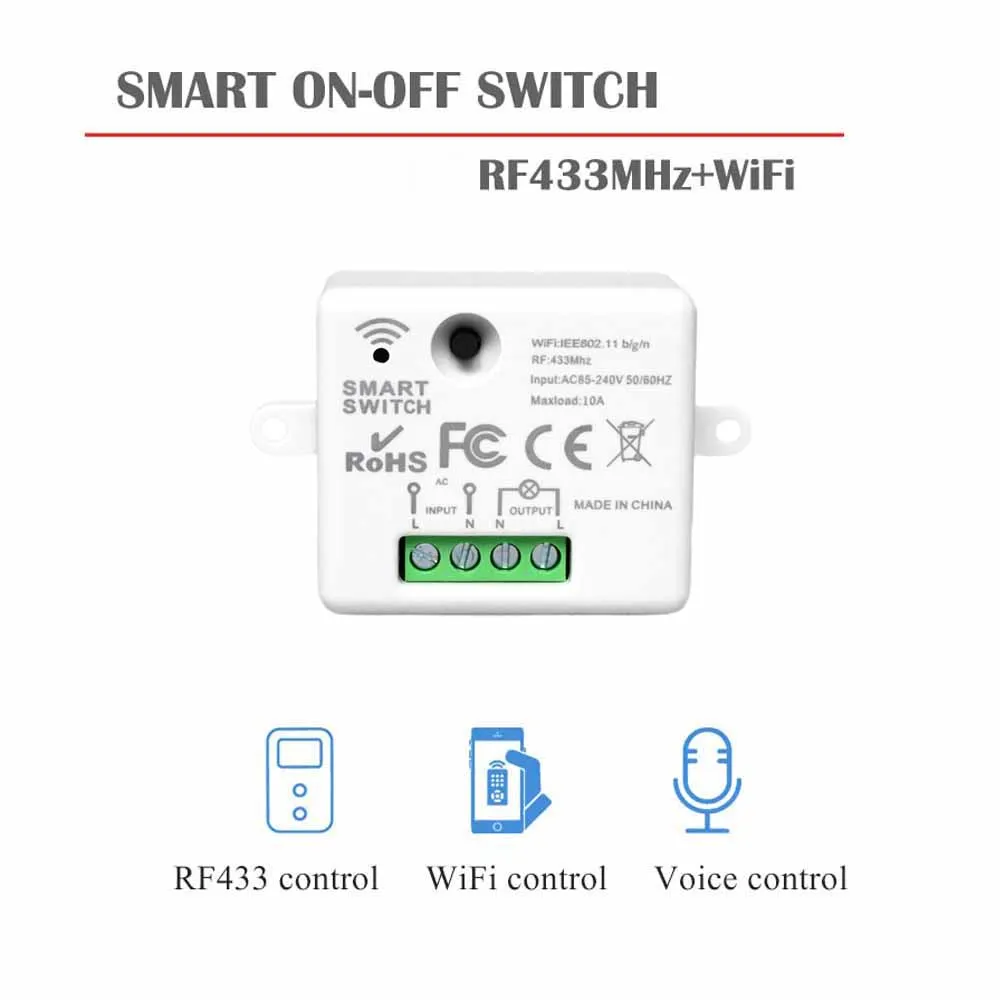

●【 APP & RF Remote Control 】smartlife APP enables you to control the Receiver anywhere with one tap via iOS & Android smart phone, no distance limitation. You can also control it with 433MHz RF remote control when there's no available network for smart phone.

●【 Schedule Automatic Control 】By presetting timers or schedules on smartlife App, a lamp can be automatically turned on/off at a specific time. Automate your home appliances via different timing schedules.

●【 Smart Scene 】 You can create smart scenes in order that one can Receiver trigger on/off another one or gather multiple devices into one group and tap to run them together.

●【 Hands-free Voice Control 】The Receiver WiFi Switch is compatible with Amazon Alexa ( Amazon Echo/Echo Dot/Amazon Tap) and Google Home Assistant. It allows you to use your voice to control home devices and enjoy hands-free experience.

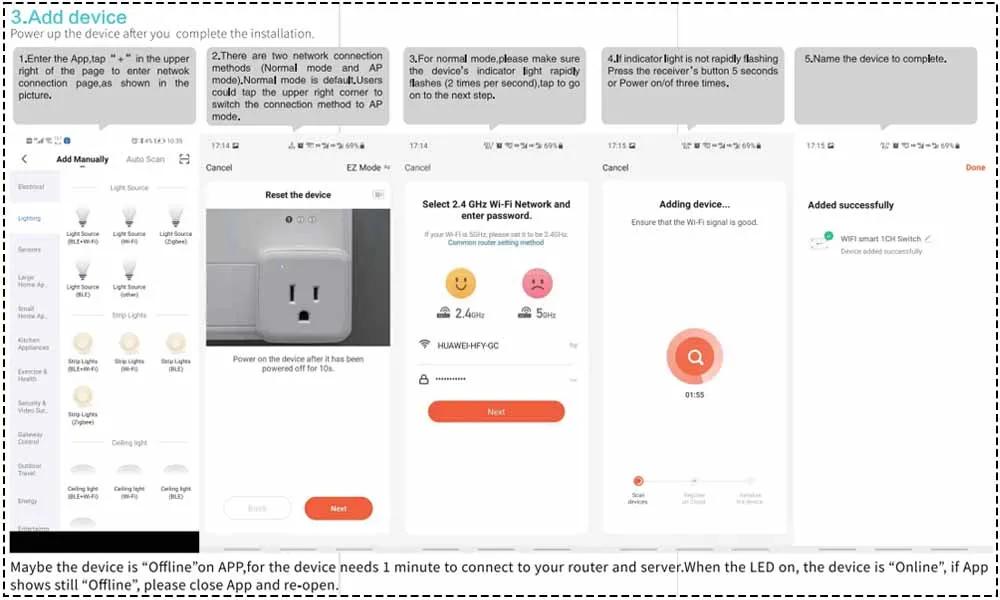

●【NOTE】 1.The router must be 2.4GHz (5.0 GHz WiFi is not supported), but there is no limitation for smart phone network (2G/3G/4G/WiFi network is ok). 2. The wireless switch and remote control need to be paired with the receiver before they can be used. Please refer to the receiver's instruction manual for pairing.

Specification

●Switch Working Voltage: AC 85V ~ 240V 110V 220V

●●Working Frequency: 433Mhz

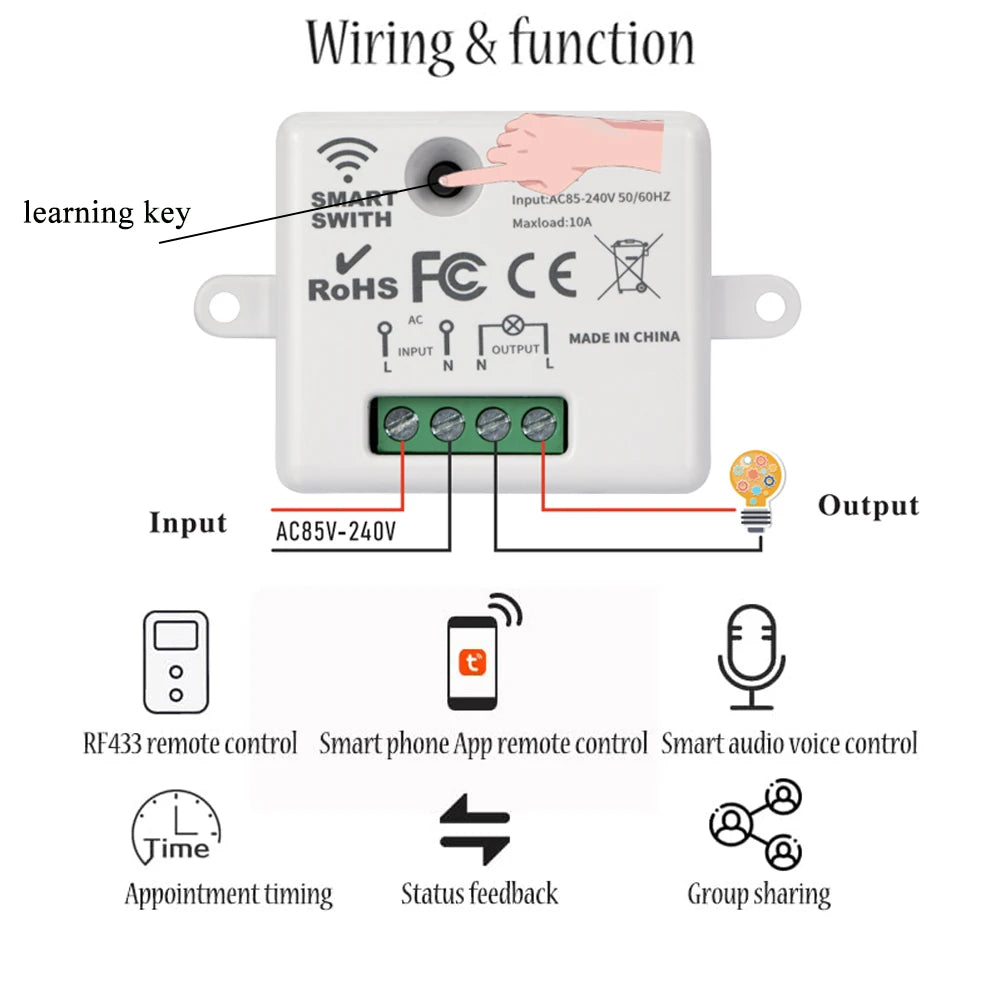

The relay input/output volt: AC 85V-240V

●Max Load: 10A Relay ( have better load less than 5A)

●Support encoding: 1527 learning code

●Receiving sensitivity:> 97dbm

●Working temperature: -30 ~ + 80

●Reception range: The open space is more than 50 meters

●Quiescent current: <5 MA

Descriptions:

●Work mode: Change it by learning button times to be compatible the controller.

1. Momentary: (Press learn button 1 time). Relay: Press and hold -> On; Release -> Off

2. Self-lock/Toggle: (Press learn button 2 times) Relay: Press -> On; Press same button again -> Off

3. Interlock/Latched: (Press learn button 3 times)Relay: Press -> On; Press other button -> Off.

4. 5s/10s/15s/20s delayed off: (Press learn button 4/5/6/7 times) Relay: Press -> On, then delayed 5s/10s/15s/20s to be off.

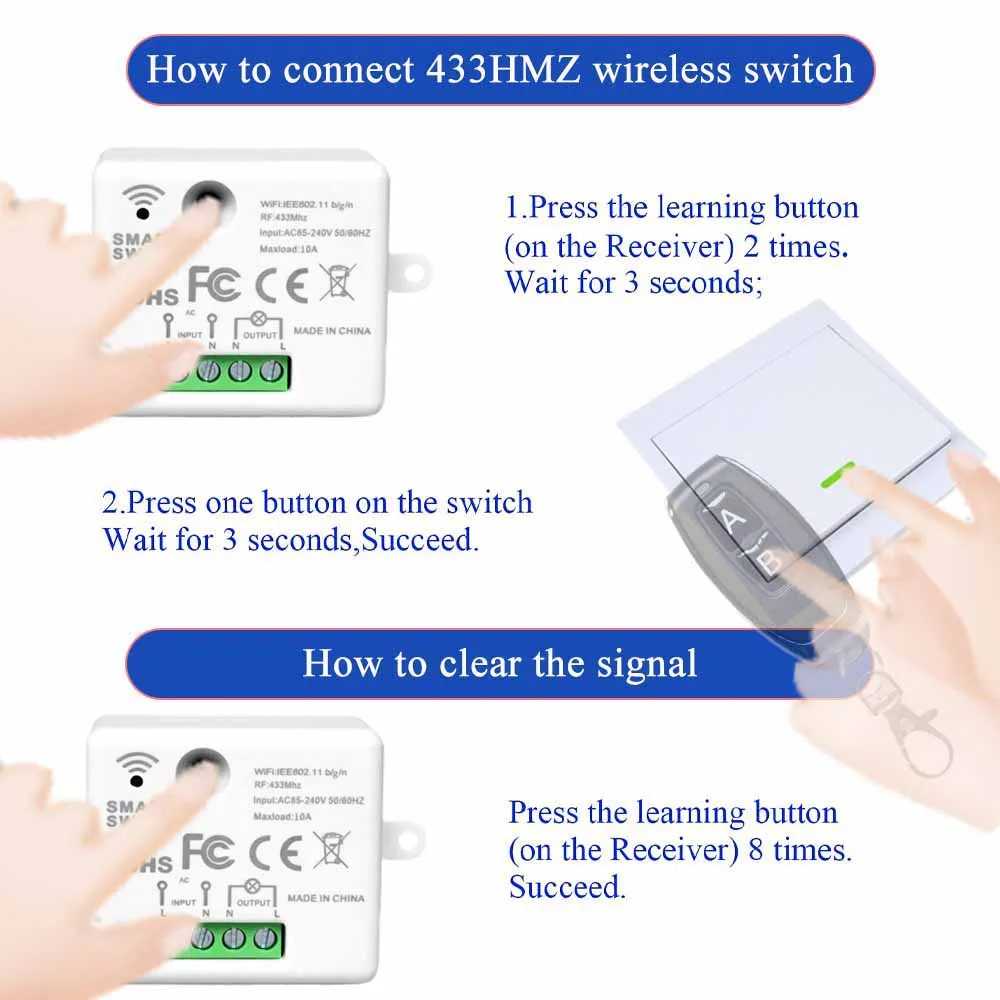

●Learning Code /Learn Method:

Connect to Power, press learn button 1/2/3/4/5/6/7 times to match the remote control button.

●Remove/delete remote controller :

Connect to Power, press learn button 6~8s, till LED OFF, the remote controller can' t control the switch

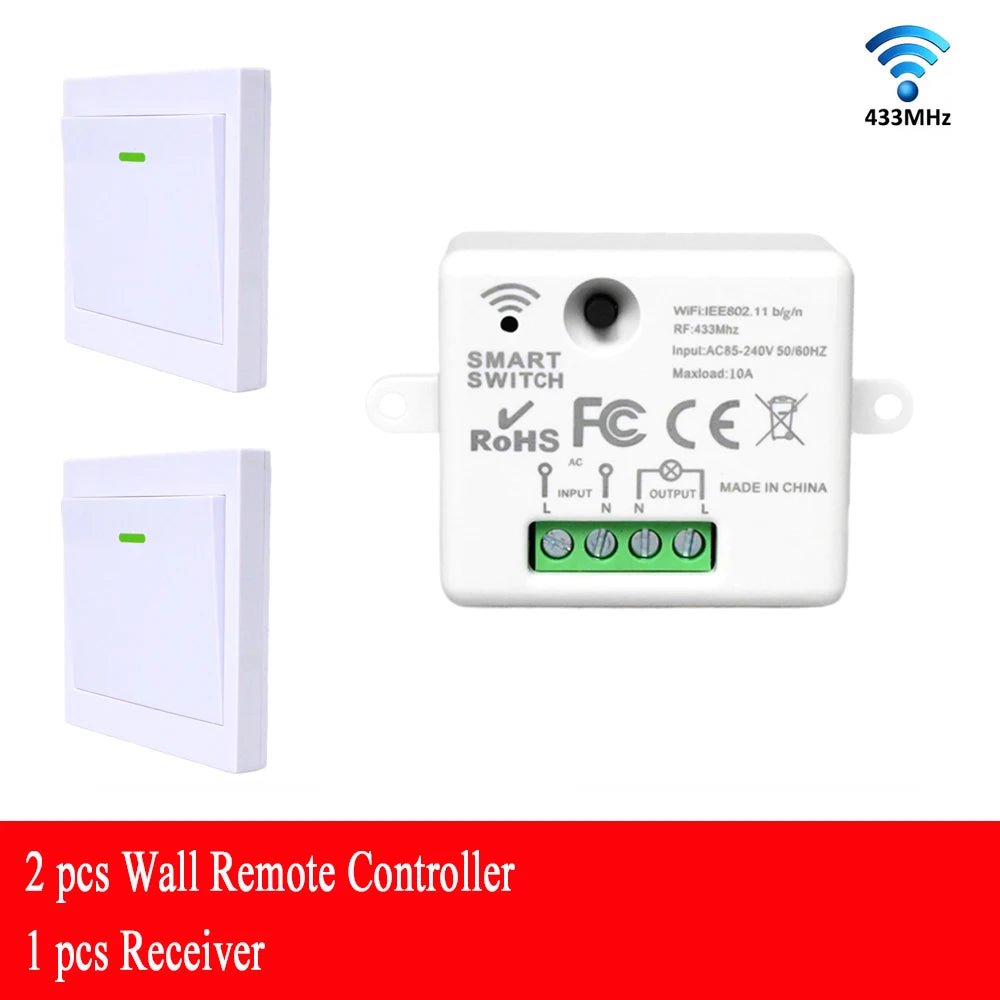

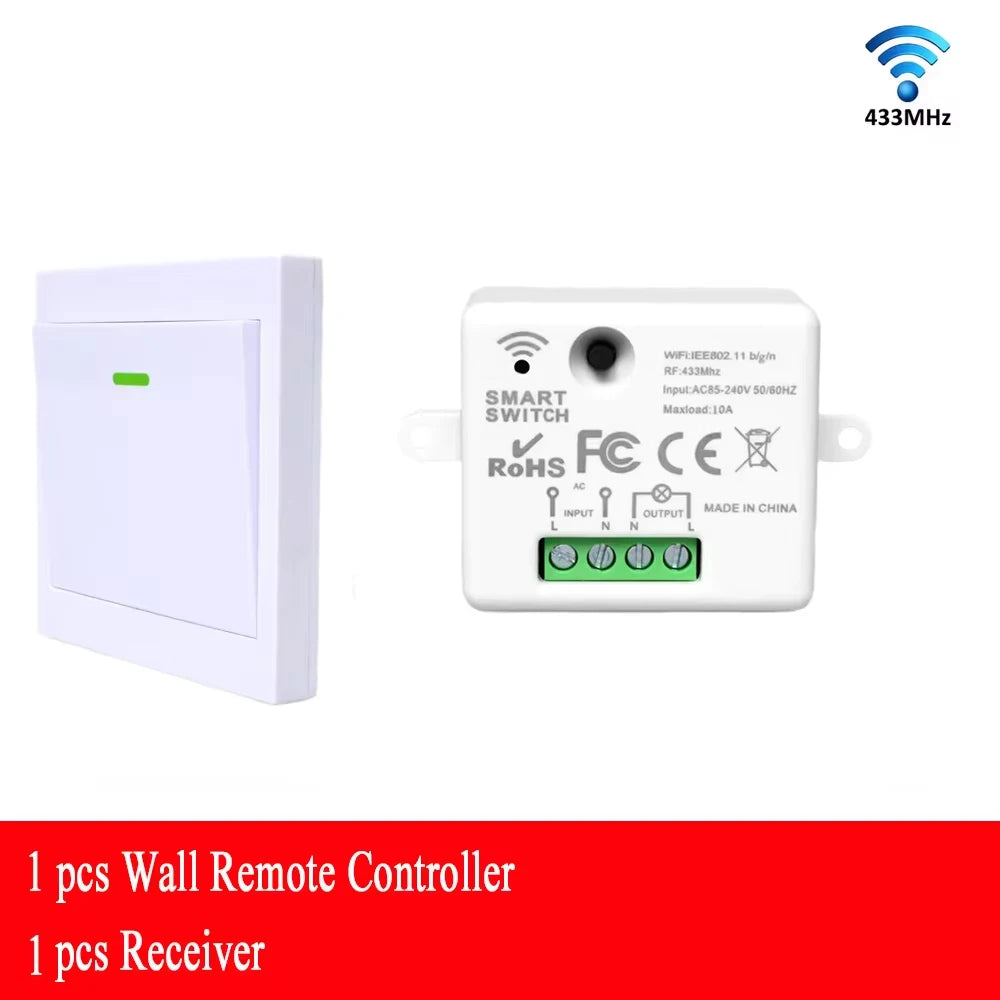

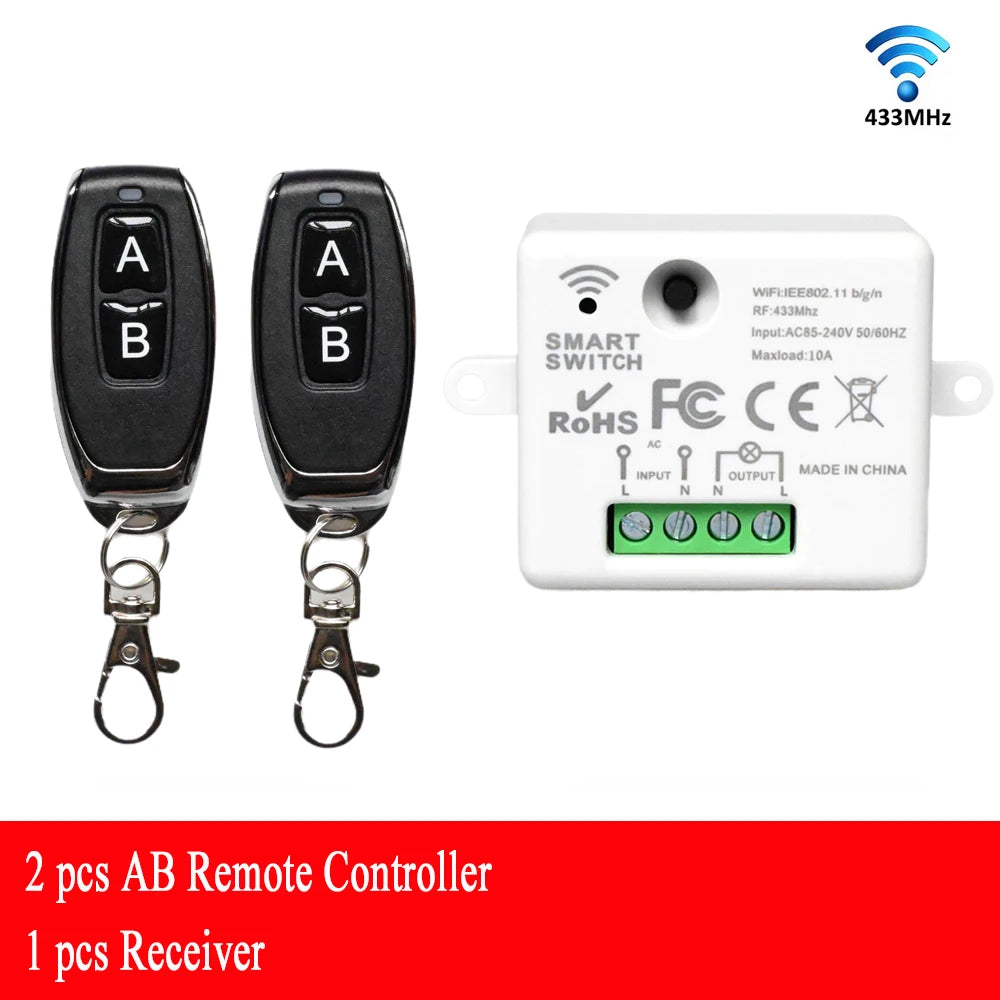

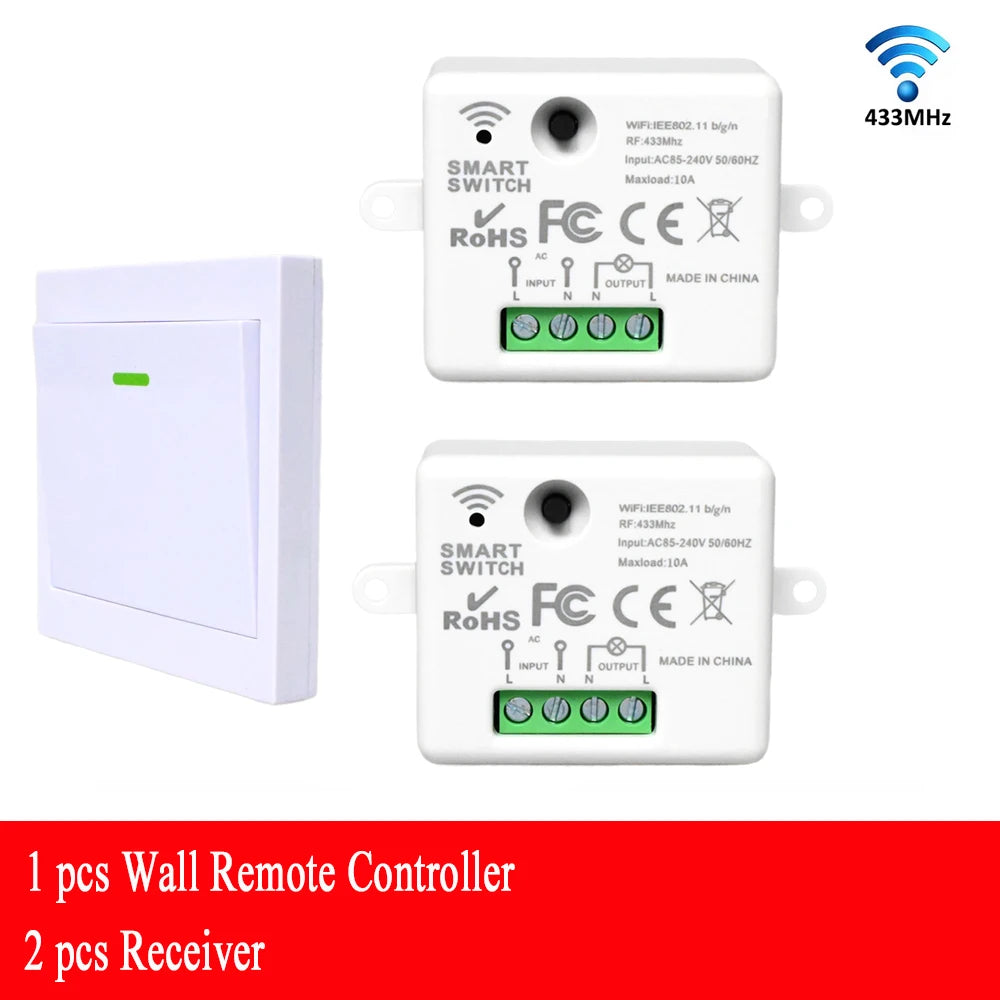

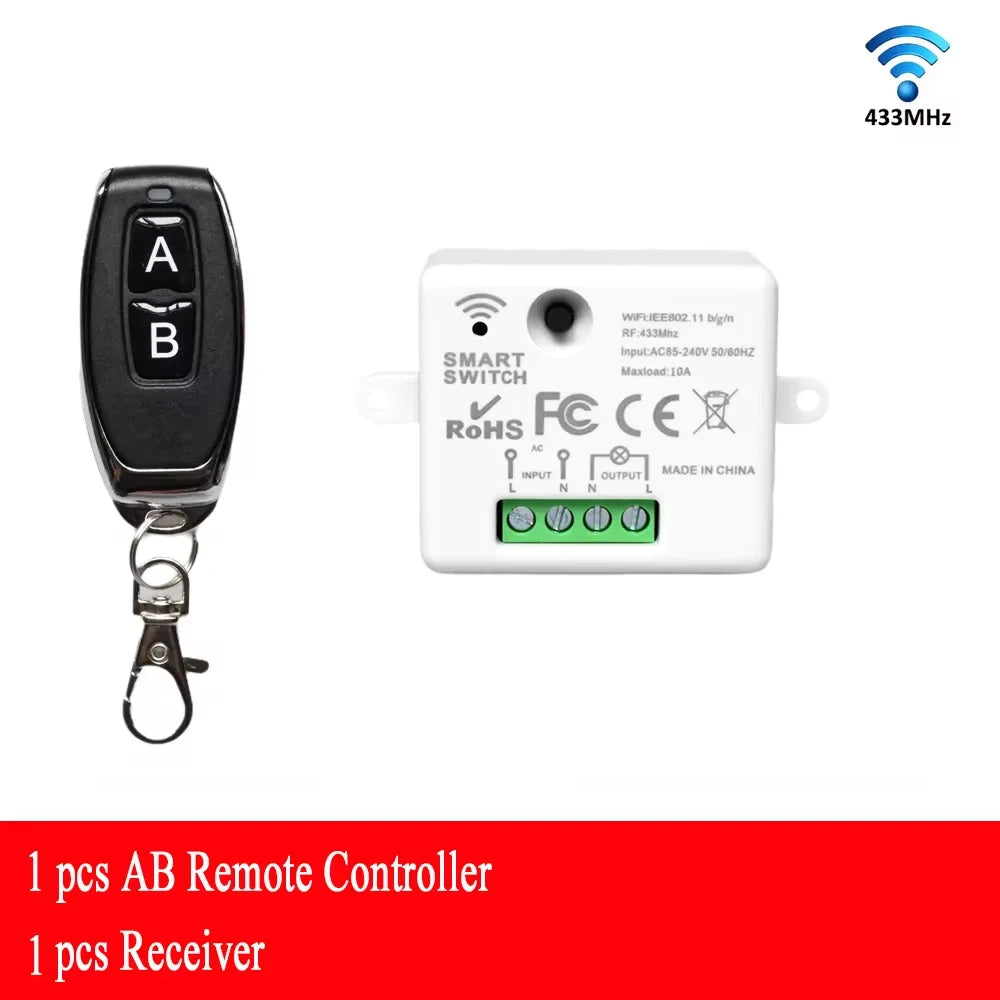

Packing List:

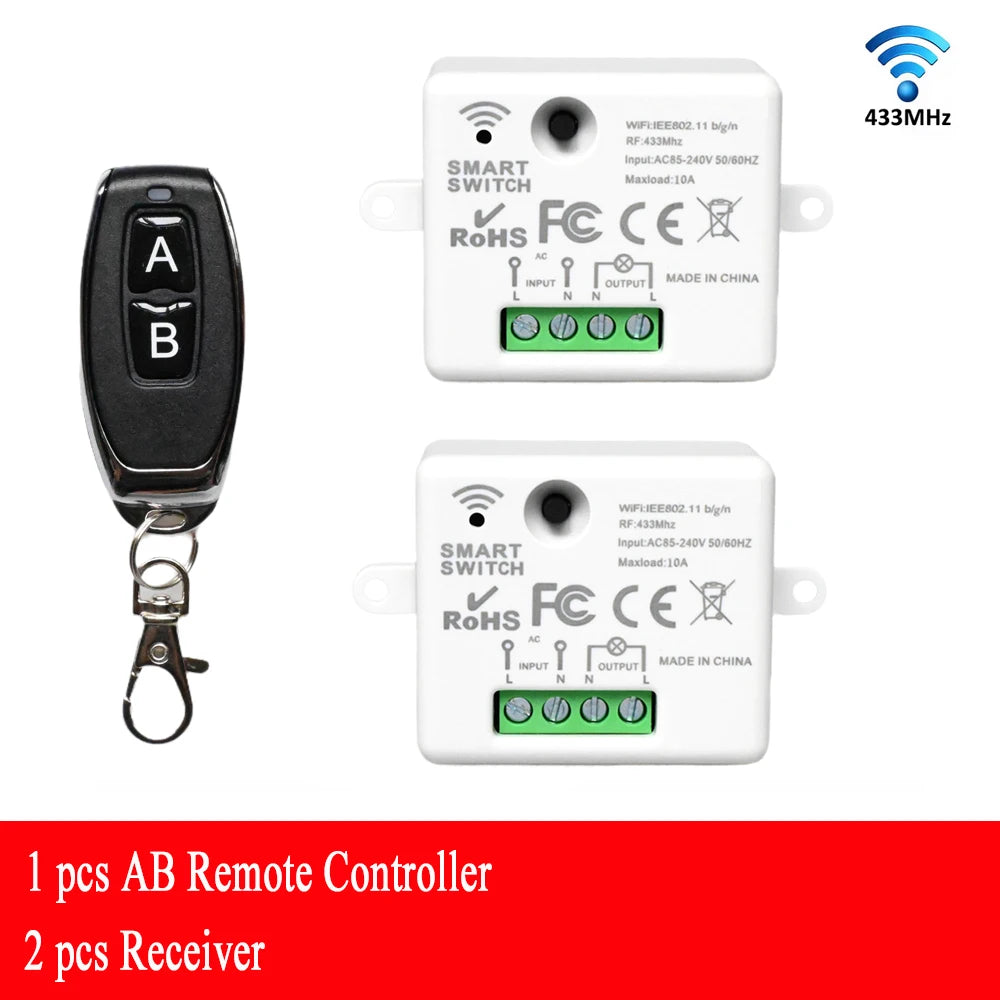

●Depends on which you selected.Plaese KIndly check th SKU picture.

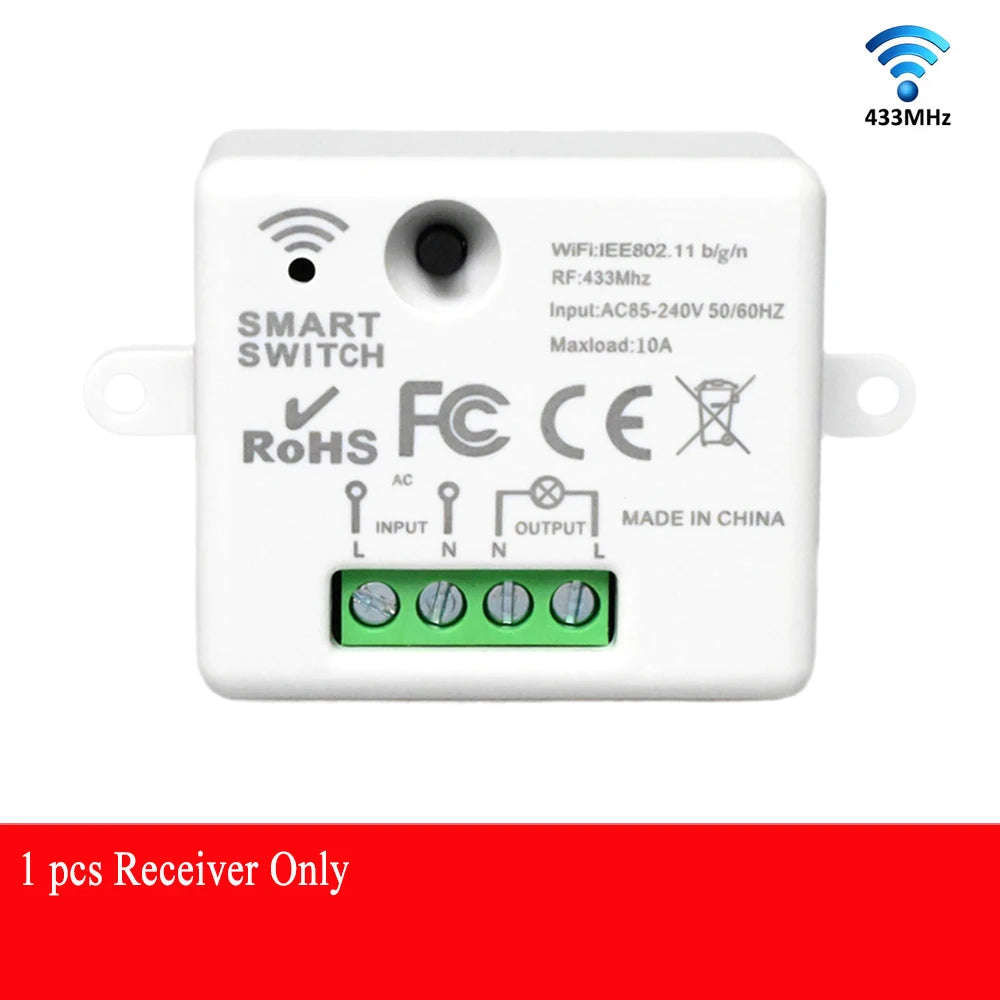

●1 pcs receiver only= 1 pcs receiver

●For shippment safety, please kindly understand there is no battery included.
